Sisteme de automatizare SOMMER

Automatizari industriale SOMMER tip "Dead-Man"

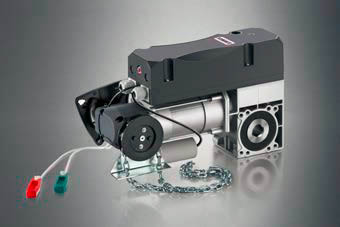

SOMMER KIT GIGA 9097

Cod	Descriere
GIGA KIT 9097	Kit Motor Industrial Axial, GIGA, Putere 70Nm, 230V, Dead-Man
	Suprafata Maxima - 20mp* \| Greutate maxima 300 Kg \|
	Include: Panou de comanda SUS / STOP / JOS \| Setare Electronica a capetelor de cursa \| Actionare cu lant H usa 4m \| Cablu de alimentare 5m \| IP 54

SOMMER KIT GIGA 9003

Cod	Descriere
GIGA KIT 9093	Kit Motor Industrial Axial, GIGA, Putere 100Nm, 380V, Dead-Man
	Suprafata Maxima - 30mp* \| Greutate maxima 450 Kg \|
	Include: Panou de comanda SUS / STOP / JOS \| Setare Electronica a capetelor de cursa \| Actionare cu lant H usa 4m \| Cablu de alimentare 5m \| IP 54

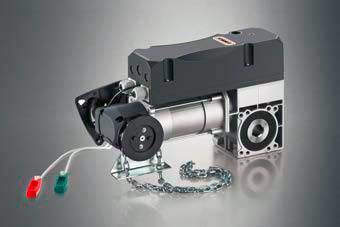

SOMMER KIT GIGA 9023

Cod	Descriere
GIGA KIT 9023	Kit Motor Industrial Axial, GIGA, Putere 100Nm, 380V, Dead-Man
	Suprafata Maxima - 40mp* \| Greutate maxima 600 Kg \|
	Include: Panou de comanda SUS / STOP / JOS \| Setare Electronica a capetelor de cursa \| Actionare cu lant H usa 4m \| Cablu de alimentare 5m \| IP 54

Automatizari industriale SOMMER tip "Plus"

SOMMER KIT GIGA 9098

Cod	Descriere
GIGA KIT 9098	Kit Motor Industrial Axial, GIGA, 70Nm, 230V, Plus
	Include: Panou de comanda SUS / STOP / JOS si afisaj LCD \| Setare Electronica a capetelor de cursa \| Actionare cu lant H usa 4m \| Cablu de alimentare 5m \| IP 54
	Optionale: Safety Edge, Actionare din Telecomanda, Semafor, Fotocelule

SOMMER KIT GIGA 9030

Cod	Kit Motor Industrial Axial, GIGA, 100Nm, 380V, Plus
GIGA KIT 9030	Suprafata Maxima - 30mp* \| Greutate maxima 450 Kg \|
	Include: Panou de comanda SUS / STOP / JOS si afisaj LCD \| Setare Electronica a capetelor de cursa \| Actionare cu lant H usa 4m \| Cablu de alimentare 5m \| IP 54
	Optionale: Safety Edge, Actionare din Telecomanda, Semafor, Fotocelule

SOMMER KIT GIGA 9033

Cod	Kit Motor Industrial Axial, GIGA, 140Nm, 380V, Plus
GIGA KIT 9098	Suprafata Maxima - 40mp* \| Greutate maxima 600 Kg \|
	Include: Panou de comanda SUS / STOP / JOS si afisaj LCD \| Setare Electronica a capetelor de cursa \| Actionare cu lant H usa 4m \| Cablu de alimentare 5m \| IP 54
	Optionale: Safety Edge, Actionare din Telecomanda, Semafor, Fotocelule

Tabel Comparativ Automatizari SOMMER GIGAsedo

COD MCA	GIGA KIT 9097	GIGA KIT 9098	GIGA KIT 9003	GIGA KIT 9030	GIGA KIT 9023	GIGA KIT 9033
COD SOMMER	9097V000	9098V000	9003V000	9030V000	9023V000	9033V000
ID motor SOMMER	GIGAsedo 024.070 CXISO	GIGAsedo 024.070 CXESO	GIGAsedo 024.100 CXIT	GIGAsedo 024.100 CXETO	GIGAsedo 018.140 CXIT	GIGAsedo 018.140 CXETO
Tipul motorului	DeadMan	PLUS	DeadMan	PLUS	DeadMan	PLUS
Alimentare	230 V	230 V	380 V	380 V	380 V	380 V
Putere	70 Nm	70 Nm	100 Nm	100 Nm	140 Nm	140Nm
Suprafata usa max.	20 mp	20 mp	30 mp	30 mp	40 mp	40 mp
Greutate usa max. *	300 kg	300 kg	450 kg	450 kg	600 kg	600 kg
Viteza	24 min-1	24 min-1	24 min-1	24 min-1	18 min-1	18 min-1
Putere absorbita	0.37 kW	0.37 kW	0.37 kW	0.37 kW	0.55 kW	0.55 kW
Frecventa	50Hz	50Hz	50Hz	50Hz	50Hz	50Hz
Ciclu de lucru	40%	40 %	60 %	60 %	60 %	60 %
Clasa Protectie **	IP54 / IP65**	IP54 / IP65**	IP54 / IP65**	IP54 / IP65**	IP54 / IP65**	IP54 / IP65**
Temperatura de lucru***	- 5°C / + 60°C	- 5°C / + 60°C	- 5°C / + 60°C	- 5°C / + 60°C	- 5°C / + 60°C	- 5°C / + 60°C
Nivel de zgomot	< 70 dB(A)	< 70 dB(A)	< 70 dB(A)	< 70 dB(A)	< 70 dB(A)	< 70 dB(A)
Diametru ax	25.4 mm	25.4 mm	25.4 mm	25.4 mm	31.75 mm	31.75 mm
Cablu alimentare	3x1.5	3x1.5	5x1.5	5x1.5	5x1.5	5x1.5
Flansa de fixare	inclus in kit	inclus in kit	inclus in kit	inclus in kit	inclus in kit	inclus in kit
Pana fixare motor pe ax	inclus in kit	inclus in kit	inclus in kit	inclus in kit	inclus in kit	inclus in kit
Cablu conectare motor / panou de comanda	inclus in kit	inclus in kit	inclus in kit	inclus in kit	inclus in kit	inclus in kit
Posibilitate conectare fotocelule	nu	da	nu	da	nu	da
Panou de comanda SUS / STOP / JOS	inclus in kit cu 5m cablu	integrat in Unitatea de Comanda	inclus in kit cu 5m cablu	integrat in Unitatea de Comanda	inclus in kit cu 5m cablu	integrat in Unitatea de Comanda
Posibilitate conectare safety edge SEGF GIGA	nu	da obligatoriu	nu	da obligatoriu	nu	da obligatoriu
Posibilitate conectare lampa de avertizare	nu	da	nu	da	nu	da
Posibilitate conectare telecomanda	nu	da	nu	da	nu	da
Posibilitate conectare semafor	nu	da	nu	da	nu	da
Unitate comanda GIGAcontrol	nu	inclus in kit	nu	inclus in kit	nu	inclus in kit
Actionare cu lant pt Hmax usa 4000 mm	inclus in kit	inclus in kit	inclus in kit	inclus in kit	inclus in kit	inclus in kit
Deblocare manual / electric	inclus in kit	inclus in kit	inclus in kit	inclus in kit	inclus in kit	inclus in kit
Capete de cursa	DES	DES	DES	DES	DES	DES
Cablu de alimentare	inclus in kit	inclus in kit	inclus in kit	inclus in kit	inclus in kit	inclus in kit
Inchidere automata temporizata	nu	inclus in kit	nu	inclus in kit	nu	inclus in kit
Compatibilitatea RECGIGA	nu	da + TC4 MCA	nu	da + TC4MCA	nu	da + TC4MCA
